20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
Подробная информация о продукте:
| Место происхождения: | Шэньчжэнь, Китай |
| Фирменное наименование: | ESTEL |
| Сертификация: | IP55 |
| Номер модели: | ET6060120A-20U |
Оплата и доставка Условия:
| Количество мин заказа: | 1 шт. |
|---|---|
| Цена: | negotiable |
| Упаковывая детали: | деревянный корпус с поддонами |
| Время доставки: | 35-45 дней |
| Условия оплаты: | T/T, Western Union |
| Поставка способности: | 3000 |
|
Подробная информация |
|||
| Охлаждение: | Естественная вентиляция | Космос потребителя: | 20U |
|---|---|---|---|
| Датчики: | Дверный датчик (необязательно) | Дверь: | Один парадный вход |
| Застежка: | Внутренний шарнир | Закрыть: | замок Анти--похищения трехочковый |
| Выделить: | Вентиляционный шкаф на полу на открытом воздухе,20U Внешний поддонный шкаф,Противоугонный замок наружного телекоммуникационного корпуса |
||
Характер продукции

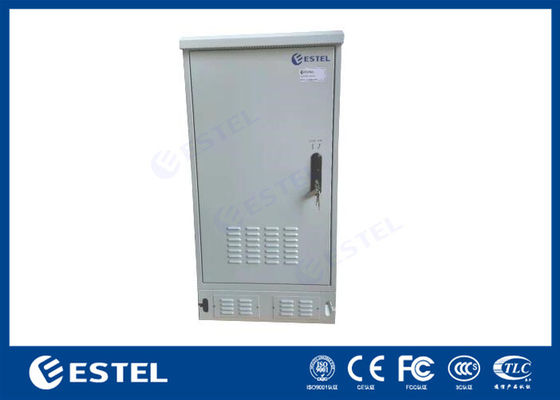

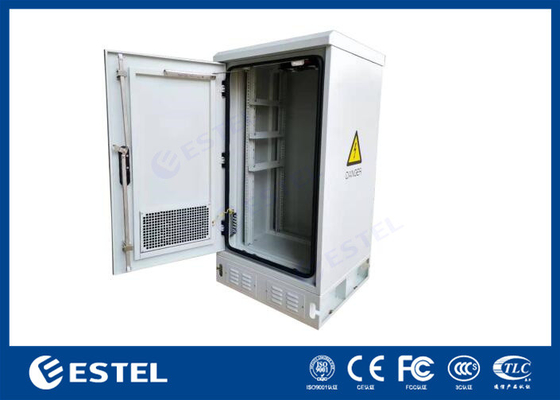

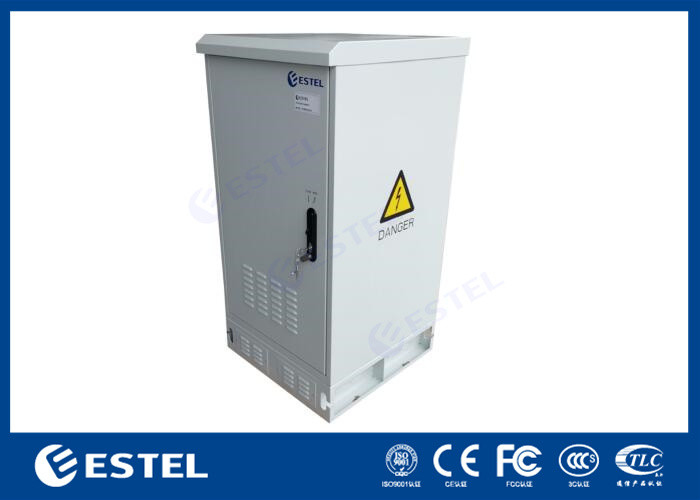

20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Application:
The outdoor cabinet can protect customer’s equipments from damage and extreme weather conditions.
The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments, power system and batteries.
It can be widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Technical Parameters:
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060120A-20U |
| Protection Level | IP55 | |
| External Dimension | H1200mm×W600mm×D600mm | |
| Internal Space | 19 inch 20U. | |
| Material | Galvanized steel, single wall without insulation. Wall thickness: 1.2mm. | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door | One front door | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Others | Door sensor, LED light with switch | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Features:
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling can add Fans or air conditioners, installed on cabinet, with filter, convenient for maintenance, cleaning and replacement
Cabinet Diagram:
